Quick Start

This section offers a brief and quick guide to using PetroFit. It also offers some basic tips on how to use the tools in Photutils and Astropy. For detailed descriptions and workflows, please visit the sections (or Photutils/Astropy documentation) on the topic you are interested in.

Loading Example Data

The following data is a cutout of a group of bright galaxies in Abell 2744 (located at (3.596248, -30.388517)). The original data was acquired by the Hubble Frontier Fields team via the WFC3 instrument in the F105W filter and can be directly downloaded from the Mikulski Archive for Space Telescopes. The cutout image used in this documentation can be found in the git repository at the following path petrofit/docs/data/abell_2744_dwarf_galaxy_f105w.fits.gz.

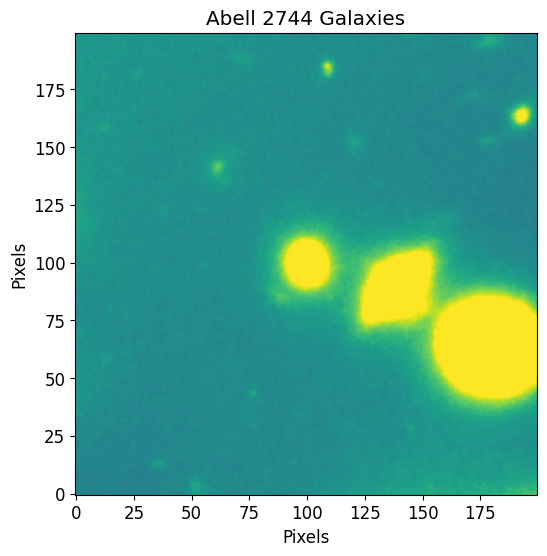

Loading Image

You can use astropy’s CCDData to load the example data and visualize it through matplotlib. Note that CCDData.read does not return a 2D array, but rather a CCDData instance which contains the image array, header, and WCS. To access the image array stored in the CCDData use the data attribute (i.e CCDData.data as shown in the plt.imshow command below).

from astropy.nddata import CCDData

image = CCDData.read('data/abell_2744_dwarf_galaxy_f105w.fits.gz')

import numpy as np
from matplotlib import pyplot as plt

plt.rcParams['figure.figsize'] = [10, 10]
plt.rcParams['image.origin'] = 'lower'

vmax = 0.05 # vmax for matplotlib imshow
vmin = - vmax

plt.imshow(image.data, vmin=vmin, vmax=vmax)
plt.title("Galaxy in Abell 2744")
plt.xlabel("Pixels")
plt.ylabel("Pixels")
plt.show()

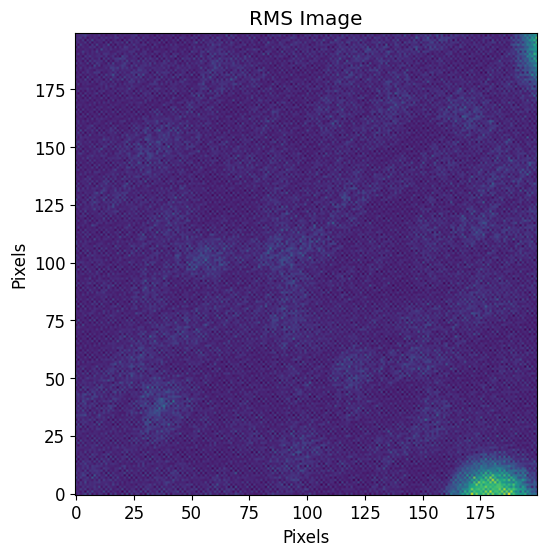

Loading RMS

Since we only want the rms image array, we use astropy’s io.fits.getdata function as follows:

from astropy.io import fits
rms = fits.getdata('data/abell_2744_dwarf_galaxy_f105w_rms.fits.gz')

plt.imshow(rms)
plt.title("RMS Image")
plt.xlabel("Pixels")
plt.ylabel("Pixels")
plt.show()

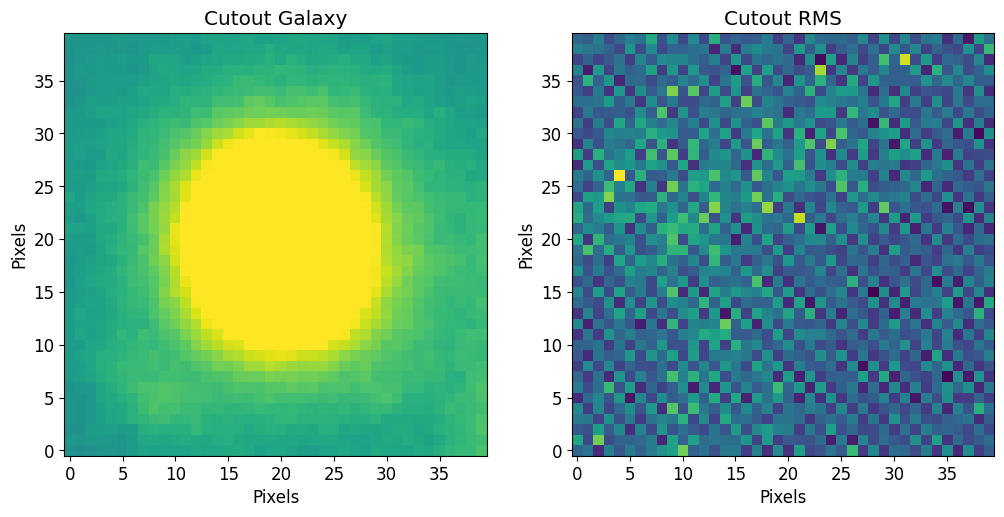

Making Cutouts

You can use astropy’s Cutout2D function to make cutouts of sources. To access the data (image array), use the data attribute (i.e Cutout2D.data as shown in the plt.imshow command below). Note that position can be a SkyCoord if you provide the Cutout2D function a WCS.

from astropy.nddata import Cutout2D

# Make cutout image, centerd at (100, 100) pixels, 40 pixels in size
cutout_image = Cutout2D(image, position=(100,100), size=40)

# Make cutout rms, centerd at (100, 100) pixels, 40 pixels in size
cutout_rms = Cutout2D(rms, position=(100,100), size=40)

# Plot cutouts
# ------------
plt.imshow(cutout_image.data, vmin=vmin, vmax=vmax)
plt.title("Cutout Galaxy")
plt.xlabel("Pixels")
plt.ylabel("Pixels")
plt.show()

plt.imshow(cutout_rms.data)
plt.title("Cutout RMS")
plt.xlabel("Pixels")
plt.ylabel("Pixels")
plt.show()

Defining AstroPy Sérsic Models

This example shows how to define a 2D Sérsic model using astropy. We fill in our initial guess for the parameters (or correct parameters if we know them) when initializing the Sersic2D object.

PetroFit provides a helper function get_default_sersic_bounds, which returns a Python dictionary with default parameter bounds. This is useful when fitting because it is used to constrain the fitting parameter space. The get_default_sersic_bounds function returns the Python dictionary below. The keys of the dictionary are parameter names and the values are tuples representing the min and max range of the parameter (N.B min or max values are set to None if boundless).

# get_default_sersic_bounds returns:

bounds = {
    'amplitude': (0., None),
    'r_eff': (0, None),
    'n': (0, 10),
    'ellip': (0, 1),
    'theta': (-2 * np.pi, 2 * np.pi),
}

from astropy.modeling import models
from petrofit.modeling import get_default_sersic_bounds

sersic_model = models.Sersic2D(

        amplitude=10, # Intensity at r_eff
        r_eff=1, # Effective or half-lilght radius
        n=4, # Sersic index
        x_0=20, # center of model in the x direction
        y_0=20, # center of model in the y direction
        ellip=0.1, # Ellipticity
        theta=0.0, # Rotation angle in radians, counterclockwise from the positive x-axis.

        bounds=get_default_sersic_bounds(), # Parameter bounds
)

To add x_0 and y_0 bounds to the default bounds, you can update the dictionary as you would a regular Python dictionary. You can add or update bounds by passing a Python dictionary to the get_default_sersic_bounds function as follows:

bound_dict = get_default_sersic_bounds( {'x_0': (10, 30),
                                         'y_0': (10, 30)} )
bound_dict

{'amplitude': (0.0, None),
 'r_eff': (0.001, None),
 'n': (0.1, 10),
 'ellip': (0, 0.99),
 'theta': (-6.283185307179586, 6.283185307179586),
 'x_0': (10, 30),
 'y_0': (10, 30)}

You can also directly update the model bounds as follows:

sersic_model.bounds.update({'x_0': (10, 30),  'y_0': (10, 30)})

Making Compound Models (Combining Models)

You can combine multiple models to form a compound model by adding, subtracting, multiplying, and dividing individual models. For example, we add the Sérsic model from the last section to itself to form a two-component Sérsic model (notice that the number of parameters double):

compound_sersic_model = sersic_model + sersic_model

from petrofit.modeling import print_model_params

print_model_params(compound_sersic_model)

10.0000 amplitude_0
1.0000  r_eff_0
4.0000  n_0
20.0000 x_0_0
20.0000 y_0_0
0.1000  ellip_0
0.0000  theta_0
10.0000 amplitude_1
1.0000  r_eff_1
4.0000  n_1
20.0000 x_0_1
20.0000 y_0_1
0.1000  ellip_1
0.0000  theta_1

Making a PSF Convolved Model

The petrofit PSFConvolvedModel2D is a Fittable2DModel that adds PSF convolution and model to image sampling to astropy core models. PSFConvolvedModel2D makes an image of the underlying model and samples it onto a grid. The model image is then convolved with a PSF if one is provided. Since PSFConvolvedModel2D is a Fittable2DModel, it can be used to fit model images to data images. For example, we wrap an astropy Sersic2D model in this doc with PSFConvolvedModel2D, which produces an oversampled and PSF convolved version of the Sersic profile at each iteration of the Levenberg-Marquardt fitting algorithm. Note that ``PSFModel`` is deprecated and replaced by ``PSFConvolvedModel2D``.

############
# Load PSF #
############

from astropy.io import fits

# Load PSF image (2D array)
PSF = fits.getdata('data/f105w_psf.fits.gz')

# Normalize PSF
PSF = PSF / PSF.sum()

# Note that the PSF shape is odd on all sides
print("PSF Shape = {}".format(PSF.shape))

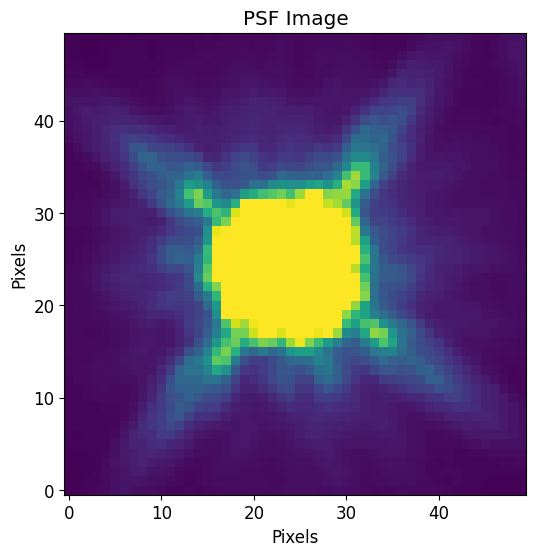

# Plot PSF and use vmax and vmin to show difraction spikes
plt.imshow(PSF, vmin=0, vmax=PSF.std()/10)
plt.title("PSF Image")
plt.xlabel("Pixels")
plt.ylabel("Pixels")
plt.show()

PSF Shape = (51, 51)

#######################
# PSFConvolvedModel2D #
#######################

from petrofit.modeling import PSFConvolvedModel2D

psf_sersic_model = PSFConvolvedModel2D(sersic_model, psf=PSF, oversample=4)

Converting Models to Images

To convert any 2D model (Astropy or PetroFit) to an image use the model_to_image function.

from petrofit.modeling import model_to_image

# Size of model image
size = 40

# sersic model image
model_image = model_to_image(model=sersic_model, size=size)

# PSF convolved model image
psf_model_image = model_to_image(model=psf_sersic_model, size=size)

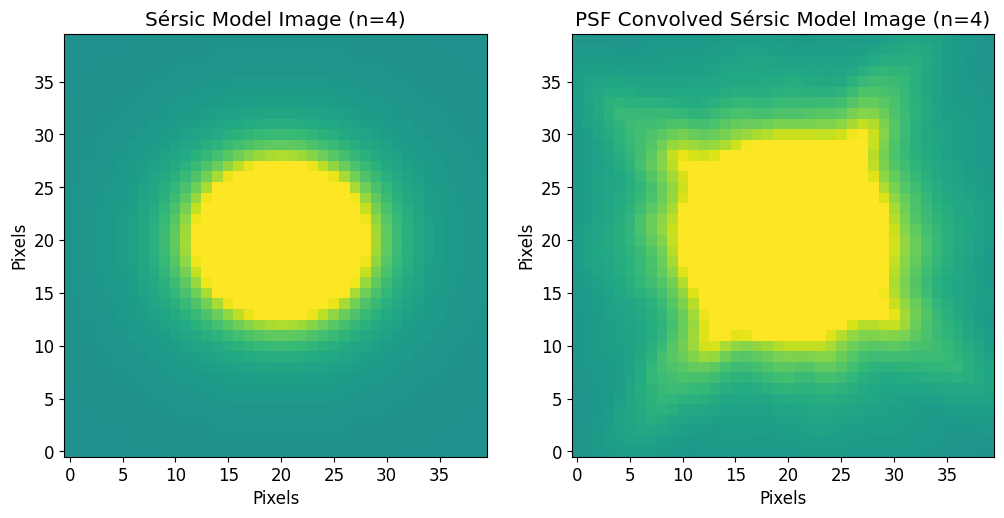

Plot model image

fig, axs = plt.subplots(1,2, figsize=(15,7.5))

plt.sca(axs[0])
plt.imshow(model_image, vmin=vmin, vmax=vmax)
plt.title('Sérsic Model Image (n=4)')
plt.xlabel("Pixels")
plt.ylabel("Pixels")

plt.sca(axs[1])
plt.imshow(psf_model_image, vmin=vmin, vmax=vmax)
plt.title('PSF Convolved Sérsic Model Image (n=4)')
plt.xlabel("Pixels")
plt.ylabel("Pixels")
plt.show()

Fitting Model to Image

We first define a model with initial guesses as follows:

sersic_model = models.Sersic2D(

        amplitude=0.1, # Intensity at r_eff
        r_eff=10, # Effective or half-lilght radius
        n=1, # Sersic index
        x_0=20, # center of model in the x direction
        y_0=20, # center of model in the y direction
        ellip=0.1, # Ellipticity
        theta=0.0, # Rotation angle in radians, counterclockwise from the positive x-axis.

        bounds=get_default_sersic_bounds({'x_0': (10, 30),  'y_0': (10, 30)}), # Parameter bounds
)

psf_sersic_model = PSFConvolvedModel2D(sersic_model, psf=PSF, oversample=4)

Before we fit the image, we compute the weights of each pixel using rms data as follows (please note that weights are optional and set to None by default):

fitting_weights = 1 / cutout_rms.data

Use the fit_model function to fit 2D models to images as follows:

%%time

from petrofit.modeling import fit_model

fitted_model, fitter = fit_model(
    image=cutout_image.data,
    model=psf_sersic_model,
    weights=fitting_weights,
    maxiter=10000,
    epsilon=1.4901161193847656e-08,
    acc=1e-09,
)

CPU times: user 510 ms, sys: 811 µs, total: 511 ms
Wall time: 512 ms

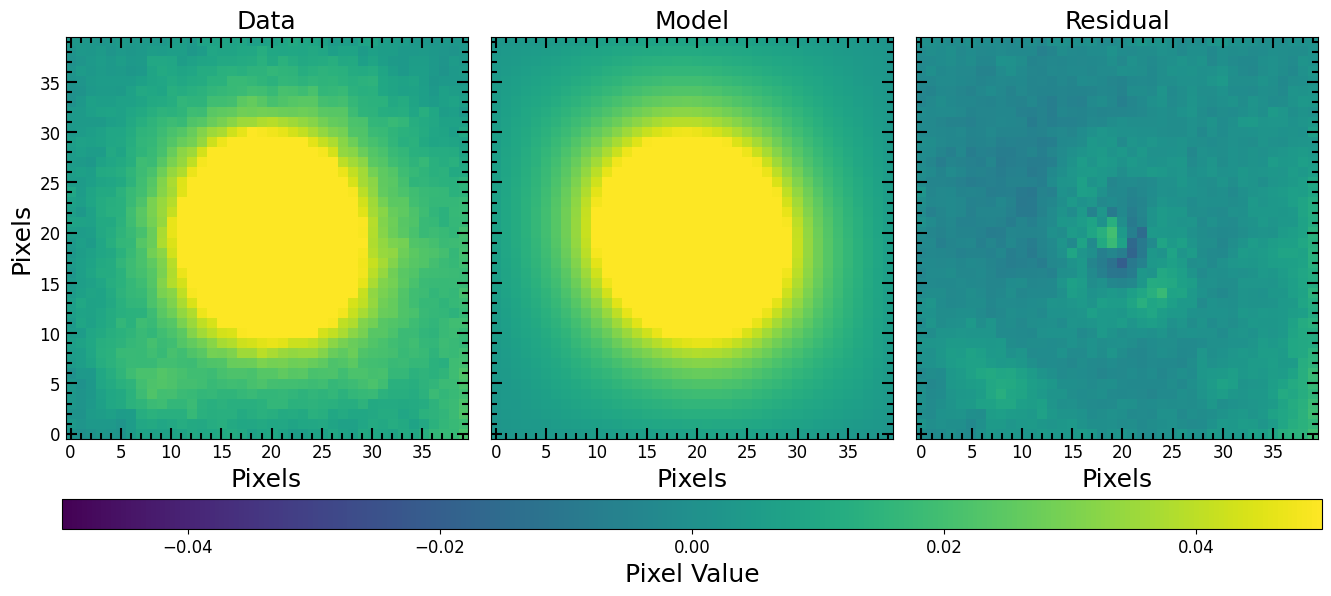

Convert the fitted model into an image

from petrofit.modeling import plot_fit

axs, model_image, residual_image = plot_fit(fitted_model, cutout_image, return_images=True,
                                            vmax=vmax, vmin=vmin, figsize=[24, 12])

for ax in axs:
    ax.set_xlabel('Pixels')
    ax.set_ylabel('Pixels')

plt.show()

Fitting Multiple Sources

If the locations of the sources are known, one can fit all sources at the same time by creating a compound model. Note that x_0 and y_0 are known beforehand using photometric centroids. Below, a compound model of 3 Sérsic components is defined and the original image is fit (i.e not the cutout we have been working with).

# Center elliptical galaxy we have been fitting:
galaxy_model_1 = models.Sersic2D(

        amplitude=0.1, # Intensity at r_eff
        r_eff=10, # Effective or half-lilght radius
        n=1.7384901, # Sersic index
        x_0=99.97722657736085, # center of model in the x direction
        y_0=99.12324178530918, # center of model in the y direction
        ellip=0.1, # Ellipticity
        theta=0.0, # Rotation angle in radians, counterclockwise from the positive x-axis.

        bounds=get_default_sersic_bounds(), # Parameter bounds
)

# Football shaped galaxy
galaxy_model_2 = models.Sersic2D(

        amplitude=0.1, # Intensity at r_eff
        r_eff=10, # Effective or half-lilght radius
        n=1, # Sersic index
        x_0=138.56315299695075, # center of model in the x direction
        y_0=89.27757468116197, # center of model in the y direction
        ellip=0.7, # Ellipticity
        theta=0.7, # Rotation angle in radians, counterclockwise from the positive x-axis.

        bounds=get_default_sersic_bounds(), # Parameter bounds
)

# Large galaxy near the bottom corner
galaxy_model_3 = models.Sersic2D(

        amplitude=0.1, # Intensity at r_eff
        r_eff=10, # Effective or half-lilght radius
        n=1, # Sersic index
        x_0=178.72302596615611, # center of model in the x direction
        y_0=63.506754312433046      , # center of model in the y direction
        ellip=0.2, # Ellipticity
        theta=0.0, # Rotation angle in radians, counterclockwise from the positive x-axis.

        bounds=get_default_sersic_bounds(), # Parameter bounds
)

Make compound PSF model as follows:

all_galaxies_model = galaxy_model_1 + galaxy_model_2 + galaxy_model_3

all_galaxies_psf_model = PSFConvolvedModel2D(all_galaxies_model, psf=PSF)

Fit the model

%%time

from petrofit.modeling import fit_model

all_galaxies_fitted_model, fitter = fit_model(
    image=image.data,
    model=all_galaxies_psf_model,
    weights=1/rms, # optional
    maxiter=10000,
    epsilon=1.4901161193847656e-08,
    acc=1e-09,
)

CPU times: user 7.24 s, sys: 2.21 ms, total: 7.24 s
Wall time: 7.24 s

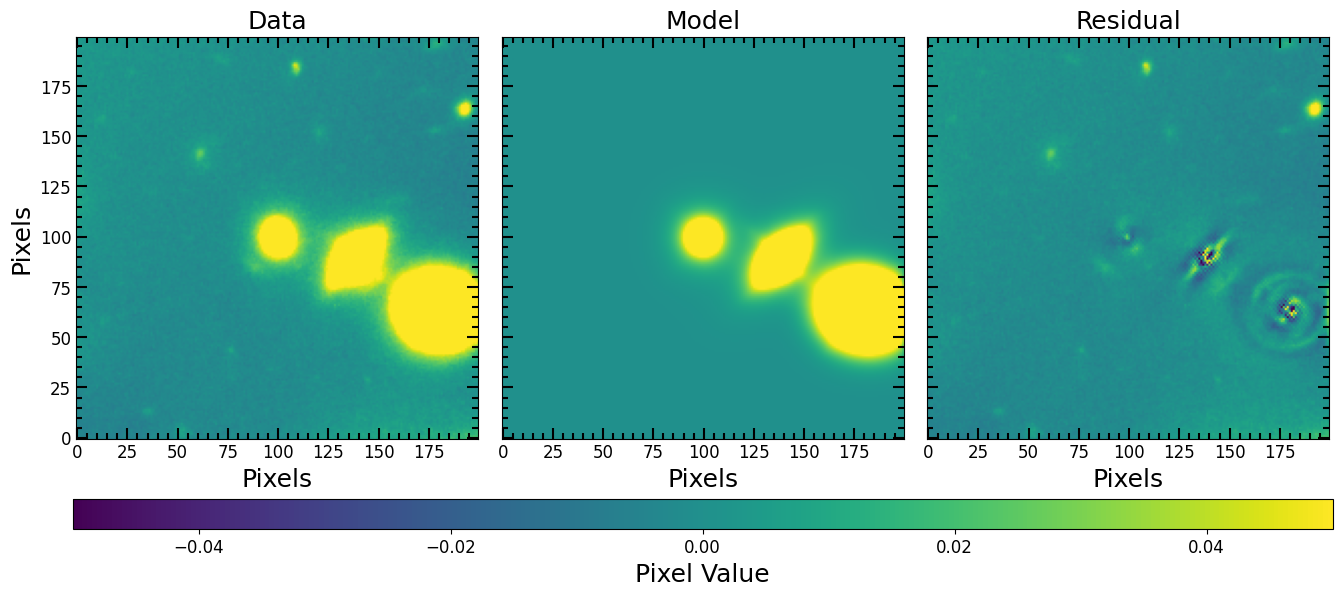

plot_fit(all_galaxies_fitted_model, image, return_images=False,
         vmax=vmax, vmin=vmin, figsize=[24, 12])
plt.show()

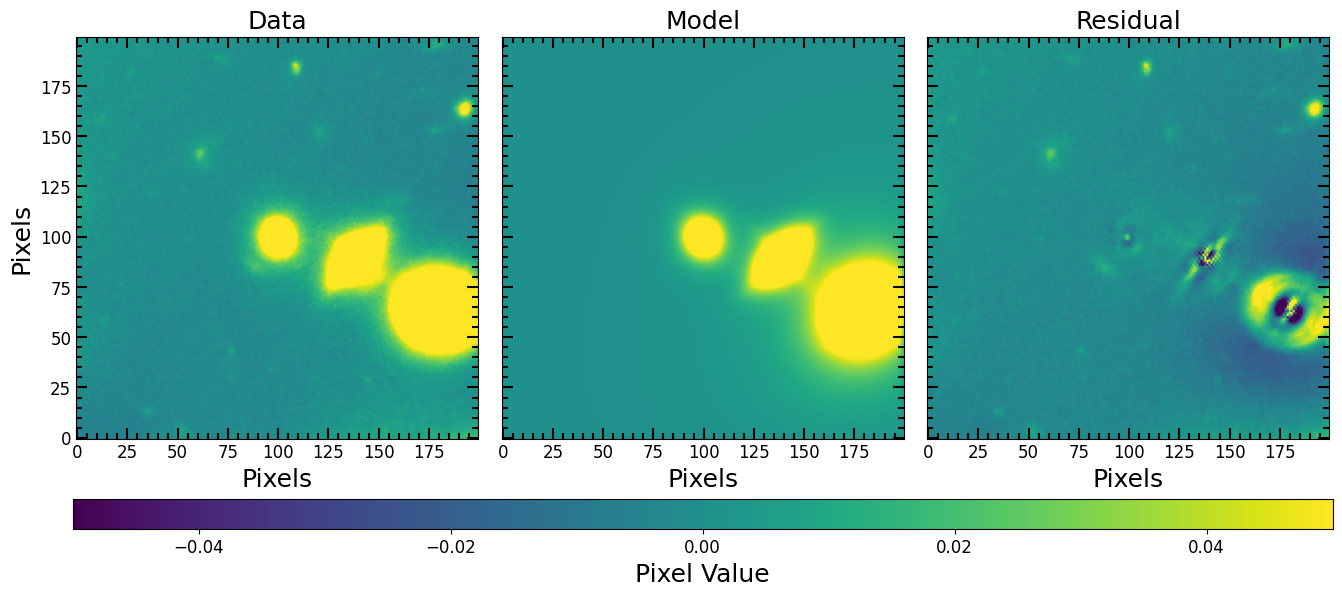

Looks like the bottom corner galaxy is a spiral, let us add another component for the spiral and fit again:

%%time

# Redefine model with an extra component for galaxy 3
all_galaxies_model = galaxy_model_1 + galaxy_model_2 + galaxy_model_3 + galaxy_model_3

# PSF model
all_galaxies_psf_model = PSFConvolvedModel2D(all_galaxies_model, psf=PSF)

# Fit the model
all_galaxies_fitted_model, fitter = fit_model(
    image=image.data,
    model=all_galaxies_psf_model,
    weights=1/rms, # optional
    maxiter=10000,
    epsilon=1.4901161193847656e-08,
    acc=1e-09,
)

# Plot the fit
plot_fit(all_galaxies_fitted_model, image, return_images=False,
         vmax=vmax, vmin=vmin, figsize=[24, 12])
plt.show()

CPU times: user 38.8 s, sys: 89.2 ms, total: 38.9 s
Wall time: 38.8 s

Fitting Image Backgrounds

The fit_background function can be used to fit the background pixels using a 2D plane. It will sigma clip the pixels (sigma value provided by the user) and fit a 2D plane to the clipped image. Users can also provide their own 2D models.

from petrofit.modeling import fit_background

bg_model, fitter = fit_background(image, sigma=3.0)
bg_image = model_to_image(bg_model, size=(image.shape[1], image.shape[0]))

Plot backround

fig, axs = plt.subplots(1,2)

plt.sca(axs[0])
plt.imshow(bg_image)
plt.title("Background Image")
plt.xlabel("Pixels")
plt.ylabel("Pixels")

plt.sca(axs[1])
plt.imshow(image.data - bg_image, vmin=vmin, vmax=vmax)
plt.title("Background subtracted image")
plt.xlabel("Pixels")
plt.ylabel("Pixels")
plt.show()

Fitting a PSF With a Moffat Model

In this example we fit the PSF itself, from the section above, using an astropy 2D Moffat model (PSF convolution is not needed for such fits). We then use the model PSF to fit the cutout image from the Making Cutouts section. We start by initializing a Moffat2D model:

moffat_model = models.Moffat2D(amplitude=1, x_0=25, y_0=25, gamma=1, alpha=1)

Fit the model using fit_model:

%%time

fitted_moffat_model, fitter = fit_model(
    image=PSF,
    model=moffat_model,
    weights=None, # optional
    maxiter=10000,
    epsilon=1.4901161193847656e-08,
    acc=1e-09,
)

CPU times: user 12 ms, sys: 1e+03 ns, total: 12 ms
Wall time: 11.7 ms

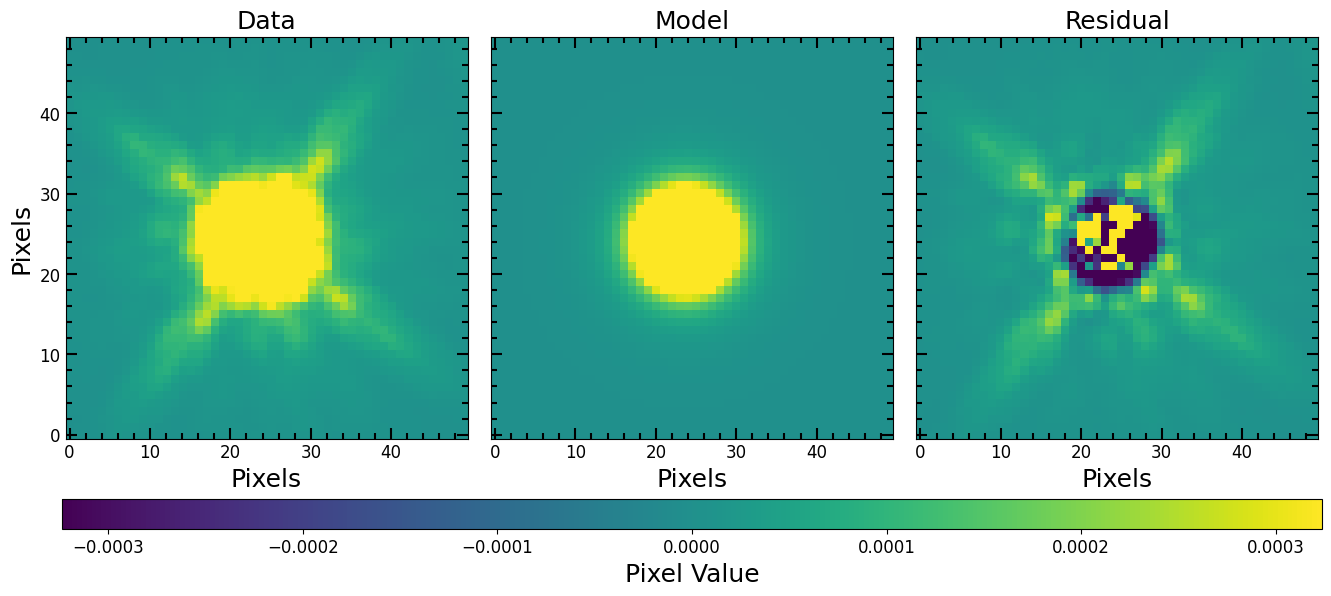

Plot the fit and print out fitted parameters:

psf_vmax = PSF.std()/10
psf_vmin = -psf_vmax
plot_fit(fitted_moffat_model, PSF, vmin=psf_vmin, vmax=psf_vmax, figsize=[24, 12])
plt.show()

print("Fitted Moffat Params:")
print_model_params(fitted_moffat_model)

Fitted Moffat Params:
0.0779  amplitude
24.6932 x_0
24.0988 y_0
2.2447  gamma
2.3226  alpha

Use the fitted Moffat model as a PSF and fit a galaxy:

# Make Moffat PSF
moffat_model_psf = model_to_image(fitted_moffat_model, size=(51, 51))

# Make a PSFConvolvedModel2D model with Moffat PSF
moffat_psf_sersic_model = PSFConvolvedModel2D(
    sersic_model,
    psf=moffat_model_psf, # Moffat PSF
    oversample=4
)

# Fit the galaxy cutout image
fitted_moffat_psf_sersic_model, fitter = fit_model(
    image=cutout_image.data,
    model=moffat_psf_sersic_model,
    weights=fitting_weights, # optional
    maxiter=10000,
    epsilon=1.4901161193847656e-08,
    acc=1e-09,
)

plot_fit(fitted_moffat_psf_sersic_model, cutout_image.data, vmin=vmin, vmax=vmax, figsize=[24, 12])

Making a Photutils Source Catalog

To make a Photutils source catalog, which can also be converted into a table, use the make_catalog wrapper as follows:

from petrofit.segmentation import make_catalog, plot_segments
from astropy.stats import sigma_clipped_stats

# Sigma clipped stats
image_mean, image_median, image_stddev = sigma_clipped_stats(image.data, sigma=3)

cat, segm, segm_deblend = make_catalog(
    image=image.data,  # Input image
    threshold=image_stddev*3,  # Detection threshold
    deblend=True,  # Deblend sources?
    kernel_size=3,  # Smoothing kernel size in pixels
    fwhm=3,  # FWHM in pixels
    npixels=4**2,  # Minimum number of pixels that make up a source
    plot=True, vmax=vmax, vmin=vmin # Plotting params
)

Display sources catalog as table:

cat.to_table()

QTable length=8

label	xcentroid	ycentroid	sky_centroid	bbox_xmin	bbox_xmax	bbox_ymin	bbox_ymax	area	semimajor_sigma	semiminor_sigma	orientation	eccentricity	min_value	max_value	local_background	segment_flux	segment_fluxerr	kron_flux	kron_fluxerr
								pix2	pix	pix	deg
int64	float64	float64	object	int64	int64	int64	int64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64	float64
1	192.918274091662	2.0141104413128668	None	184	199	0	6	73.0	4.059218959894892	1.51274149514141	4.573733308635419	0.9279646938023087	0.009197652339935303	0.02371048368513584	0.0	1.079979362897575	nan	3.270188279695567	nan
2	177.58415925312164	1.6049708579663586	None	173	182	1	3	19.0	2.4128066644350166	0.6652011253765318	-0.6658922197554297	0.9612448805237657	0.009142090566456318	0.013734133914113045	0.0	0.21102124266326427	nan	2.4873589470681665	nan
3	61.17365369961398	141.00116334754915	None	59	64	137	144	37.0	1.8397934590700944	1.3411527129881553	71.62290665463276	0.6845465268914117	0.009391779080033302	0.026845833286643028	0.0	0.6124230362474918	nan	1.8546064728864318	nan
4	192.3580846748689	163.3996312195041	None	187	197	158	169	90.0	2.3040018301603666	2.044773697884348	55.905497428428134	0.46083105830884313	0.008794508874416351	0.0929785966873169	0.0	2.9120178716257215	nan	3.2742074725713755	nan
5	108.66793260499497	183.90049157806442	None	106	111	180	187	39.0	1.7989114800444517	1.302978071795277	-85.44730446567772	0.6894694923617852	0.008675895631313324	0.045437149703502655	0.0	0.8557351296767592	nan	1.070700521959084	nan
6	178.711257217933	63.49228593950467	None	142	199	33	94	2716.0	9.420031411435271	9.186448645038533	-41.92272497092981	0.22130955184969686	0.00831806380301714	3.6771397590637207	0.0	422.01793033163995	nan	422.8623354271193	nan
7	138.56653500367548	89.2886186705602	None	113	167	64	112	1843.0	7.523736362982759	5.49861759566049	43.8970823698904	0.6825530754988071	0.008136429823935032	3.6545557975769043	0.0	243.90444730501622	nan	240.21781130318425	nan
8	99.97230291527688	99.12375893226742	None	83	118	81	117	1118.0	6.742586627908717	6.401222934668352	80.14487729404905	0.31415411906883967	0.008563084527850151	0.44580602645874023	0.0	56.82248083688319	nan	60.391903621811394	nan

Curve of Growth and Petrosian Radii

This step in detailed in the Photometry and Petrosian sections but we will do a simple example here. The first step is to pick a source from the catalog we made in the last step:

source = cat[6]

# Photutils cutout of the source
# Not to be confused with the cutout we made
plt.imshow(source.data, vmin=vmin, vmax=vmax)
plt.show()

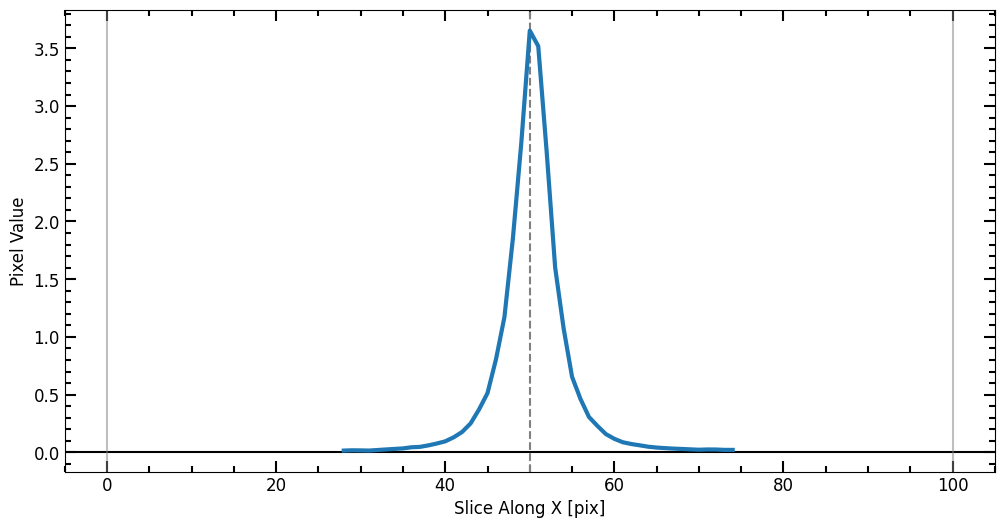

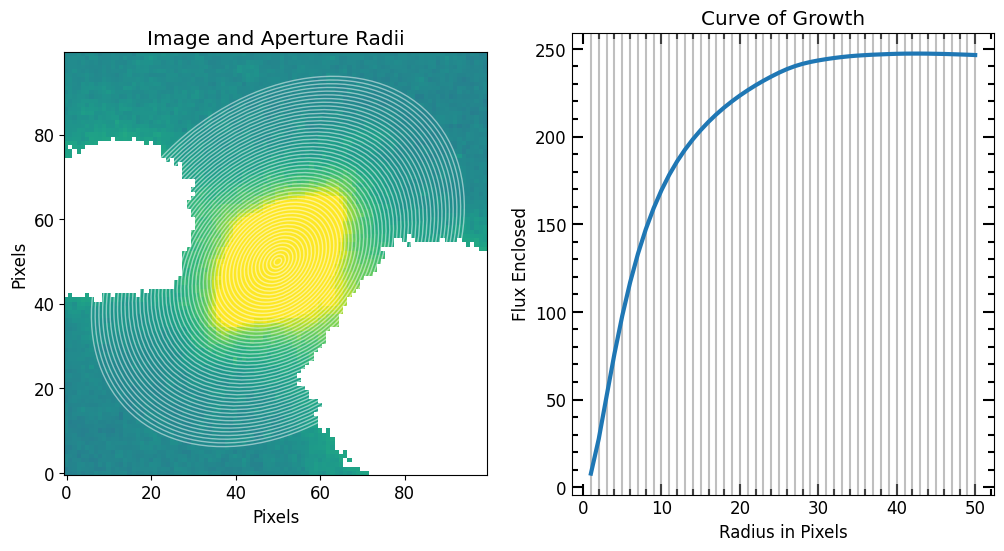

Now we use PetroFit source_photometry to compute the curve of growth

from petrofit.photometry import source_photometry
from petrofit.photometry import make_radius_list

r_list = make_radius_list(
    max_pix=50, # Max pixel to go up to
    n=50 # the number of radii to produce
)

# Photomerty
flux_arr, area_arr, error_arr = source_photometry(

    # Inputs
    source, # Source (`photutils.segmentation.catalog.SourceCatalog`)
    image.data, # Image as 2D array
    segm_deblend, # Deblended segmentation map of image
    r_list, # list of aperture radii

    # Options
    cutout_size=max(r_list)*2, # Cutout out size, set to double the max radius
    bkg_sub=True, # Subtract background
    sigma=3, sigma_type='clip', # Fit a 2D plane to pixels within 3 sigma of the mean
    plot=True, vmax=vmax, vmin=vmin, # Show plot with max and min defined above
)
plt.show()

7

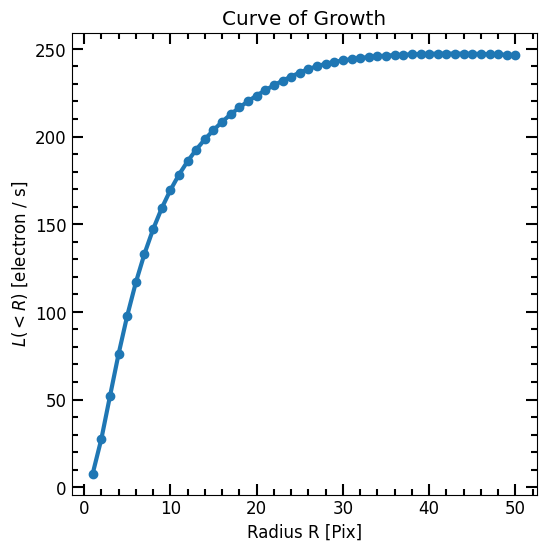

Now we have a radius list (r_list) and a corresponding enclosed flux list (flux_arr), we can plot the curve of growth and initialize a Petrosian profile

plt.plot(r_list, flux_arr, linewidth=3, marker='o')

plt.title("Curve of Growth")
plt.xlabel("Radius R [Pix]")
plt.ylabel("$L(<R)$ [{}]".format(image.unit))
plt.show()

We now define the Petrosian using the curve of growth arrays and inspect various radii:

from petrofit.petrosian import Petrosian

p = Petrosian(r_list, area_arr, flux_arr)

print(p.r_half_light, p.r_total_flux, p.r_petrosian, p.c2080)

6.31126225245049 30.12602520504101 15.063012602520505 3.3277913533762824

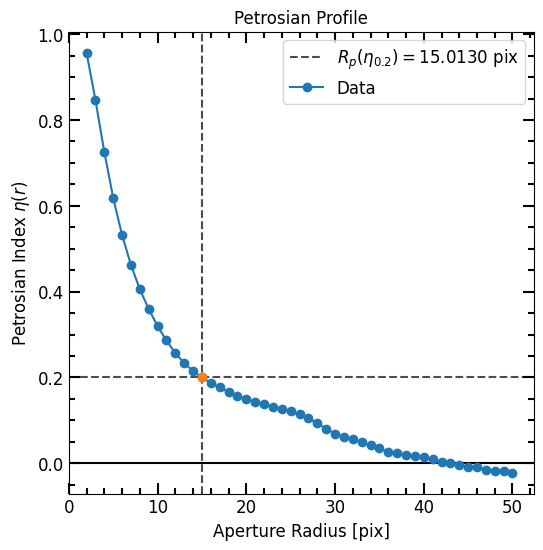

The radii can be plotted as follows:

# Plot Petrosian
p.plot(plot_r=True)
plt.show()

# Plot radii over image
from petrofit.segmentation import get_source_position, get_source_elong, get_source_theta

# Get shape and pixel location from source
position = get_source_position(source)
elong = get_source_elong(source)
theta = get_source_theta(source)

# Plot radii
p.imshow(position=position, elong=elong, theta=theta, lw=1.25)

# Plot image
plt.imshow(image.data, vmax=vmax, vmin=vmin)

plt.title('Petrosian Radii')
plt.xlabel("Pixels")
plt.ylabel("Pixels")
plt.legend()
plt.show()
